Rear extension, A1 sheet set
A large-format rear extension set, presented as full A1 architectural sheets.
In plain English: The same rear extension drawings on large A1 sheets, the format many councils and builders prefer to work from.
The same discipline, presented at a larger scale.
Some councils and most contractors prefer working from large-format sheets, where plans, elevations and sections sit together rather than spread across many pages.
What we drew

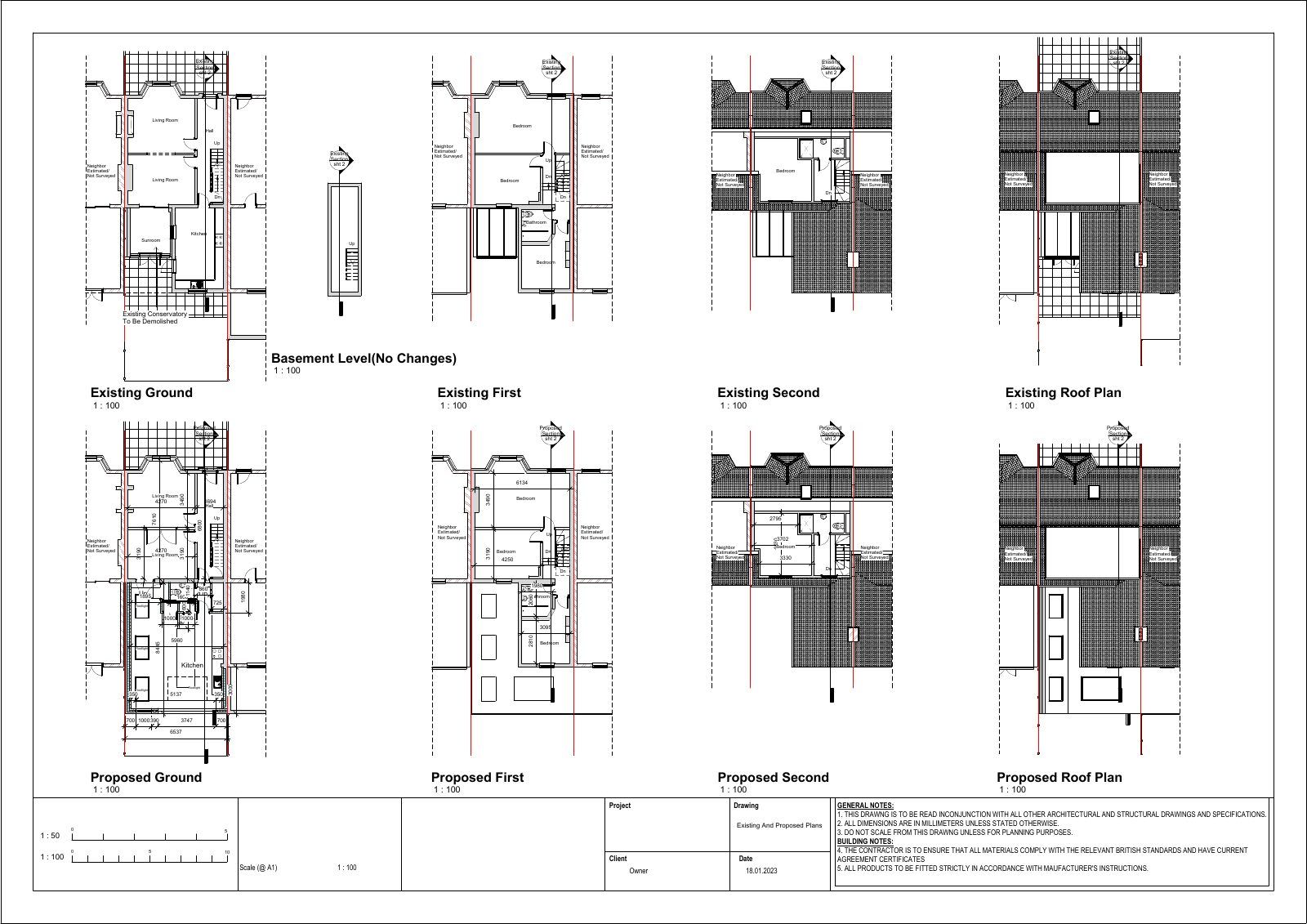

- Full A1 sheets holding the scheme in one view

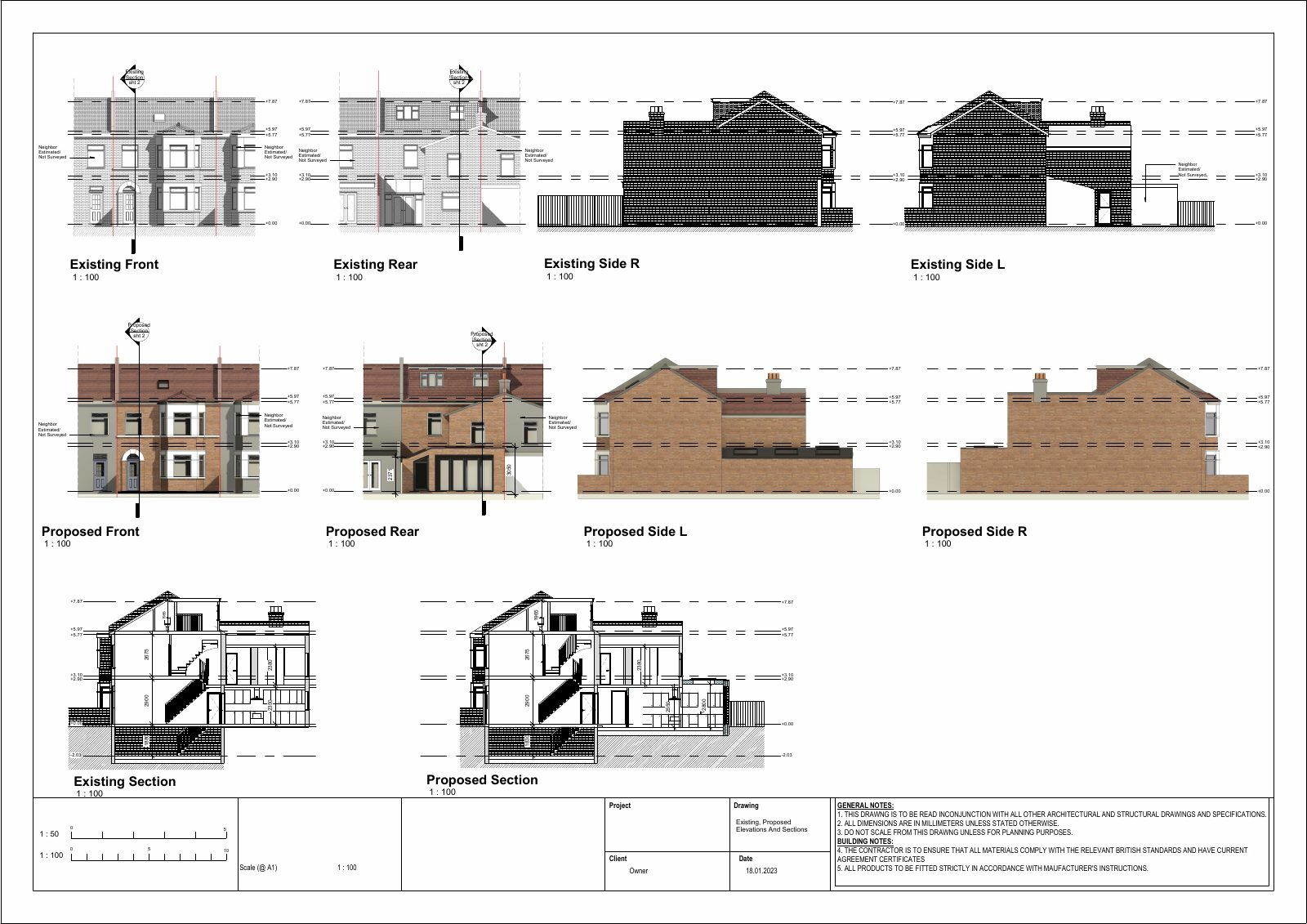

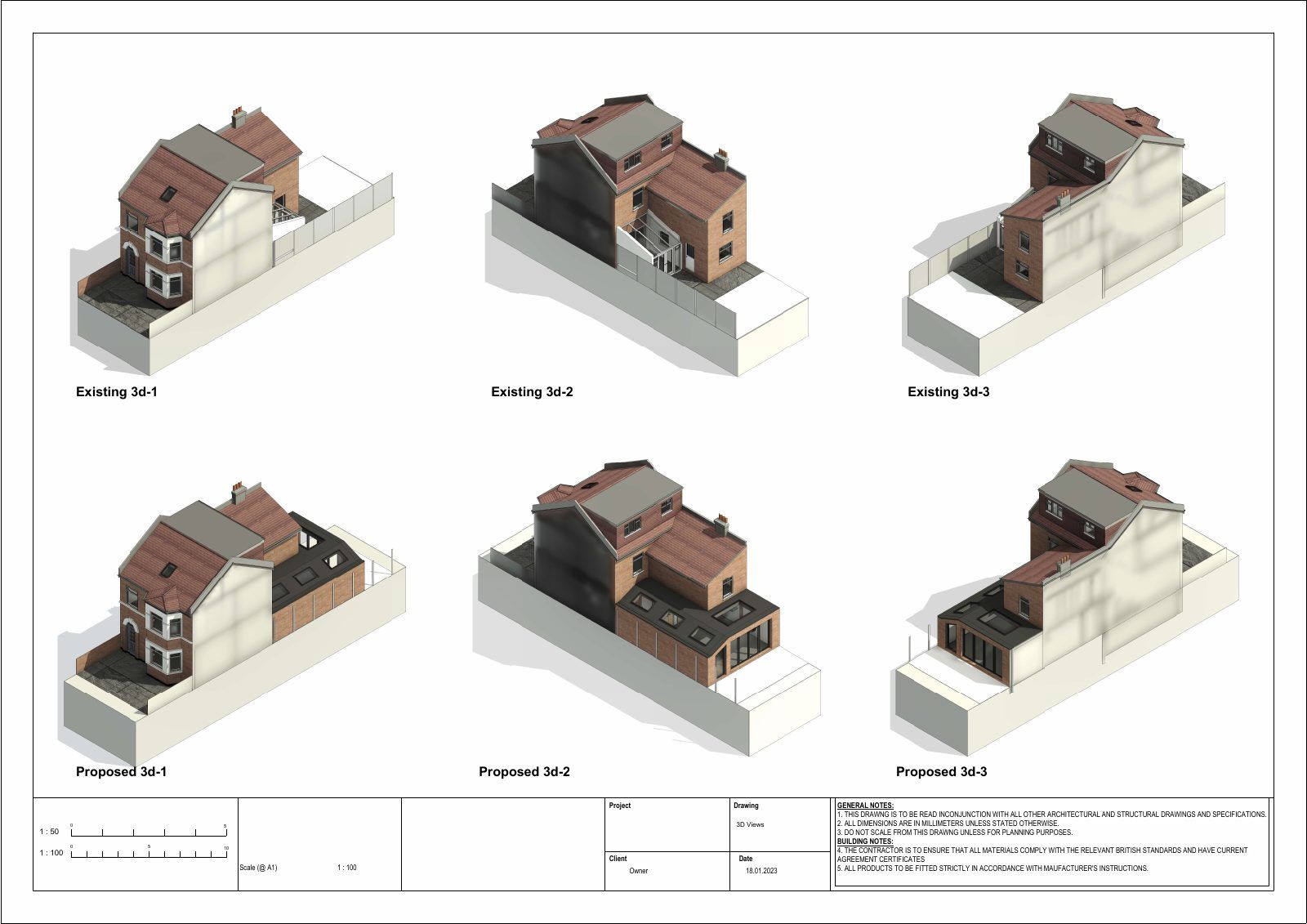

- Existing and proposed kept side by side for comparison
- Consistent scales and a complete title block on every sheet
Large-format presentation reduces back-and-forth, because everyone involved is looking at the same drawing rather than cross-referencing four.
Some schemes are best presented on large-format A1 sheets, where plans, elevations and sections sit together at a generous scale. This set demonstrates that format.
As with every project, the drawings are council-ready and independent, so you can take them to any contractor they trust.
3 sheets
